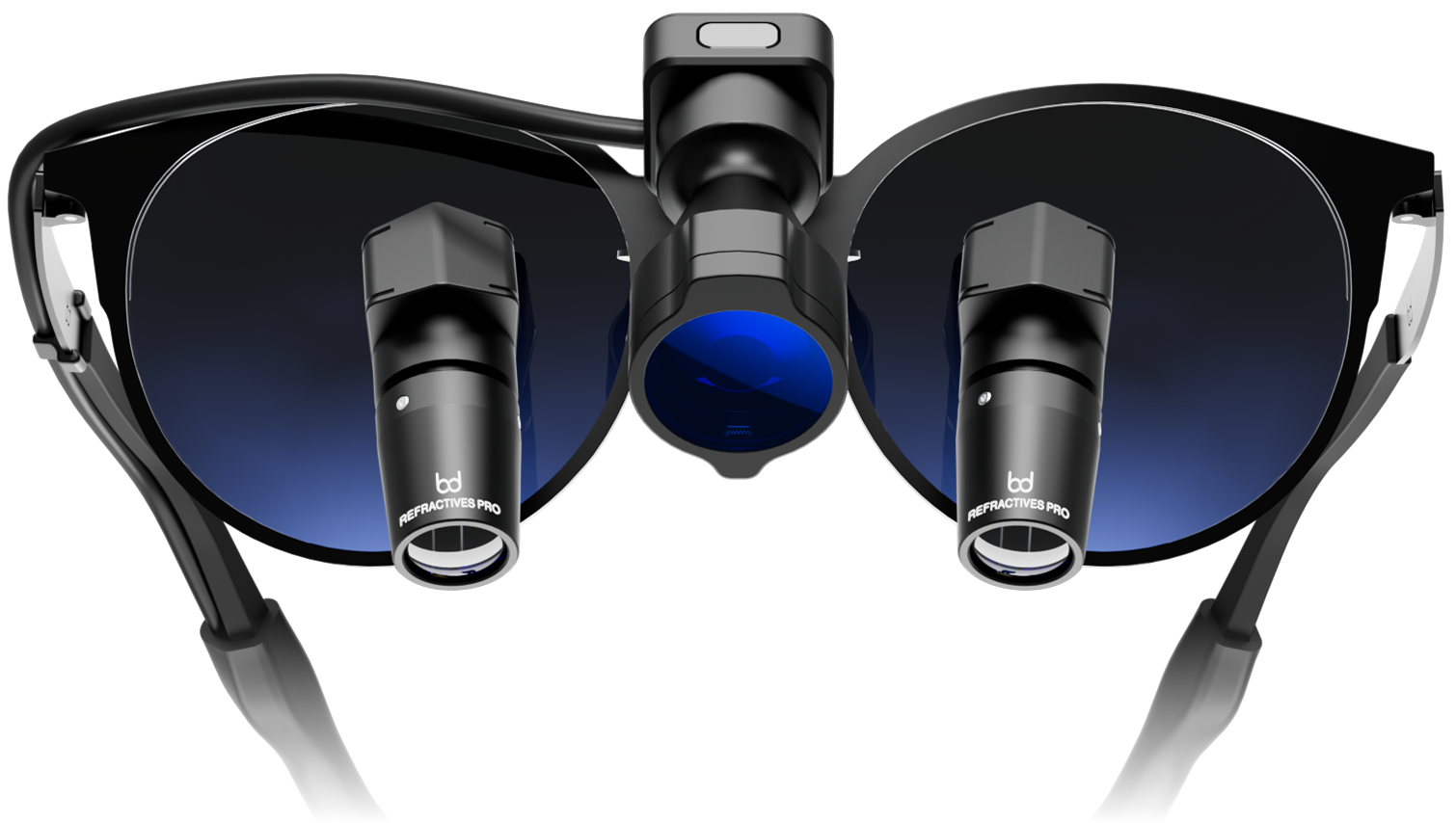

Designed by dentists, for dentists created by the world’s most trusted loupe brand.
Dimensions.
In the box
LED Headlight
Dichroic composite filter
Battery unit 2x
Power adapter (Country specific)
Headlight bracket (Frame specific)
Ignis 4 Magstrap
Ignis 4 Screwdriver
Quick start guide
Technical
Model Ignis 4 Pro
Spot size (A-490430): 10cm diameter @ 40cm Working Distance
Spot size (B-490430): 7cm diameter @ 40cm Working Distance
Beam colour temperature: 5700K
Beam intensity: High: 131 lm, Mid: 98 lm, Low: 52 lm
Battery weight (Circa): 35.7g each
System weight (Circa exc. batteries): 62g
Charger input: AC100 - 240 volts, 50-60 Hz, max. 0.8A
Headlight weight: 49.5g
Total device weight: 95.9g
Battery weight: 35.7g
Operating time: High: 2.5 hours, Mid: 4 hours, Low: 5.5 hours
Charger output: 5.0V 2A 10W
Battery charge/discharge cycle count: >300
LED Output Currents: 670mA, 500mA, 335mA
Battery capacity: 1700mAh
Battery dimensions: 35.5 mm x 28.0 mm x 20.5 mm
Device features:
3 Light Output Modes (High, Mid, and Low)
Haptic Field Engine
Touch and Gesture Mode Setting
Instant Light Output Mode Setting
Storage and shipping condition.
Storage at room temperature 0°- 40°
Relative humidity 30 - 75%
Environmental operating conditions
Operating temperature 0°-30°
Charging temperature 10°- 30°
Relative humidity 30-75%
Atmospheric pressure 70.0 kPa to 106.0 kPa
